Lap-joint Flange
  • Lap-joint Flange

Product Information

Lap-joint Flange


- Mainly used when frequent dismantling is necessay



Product Overview

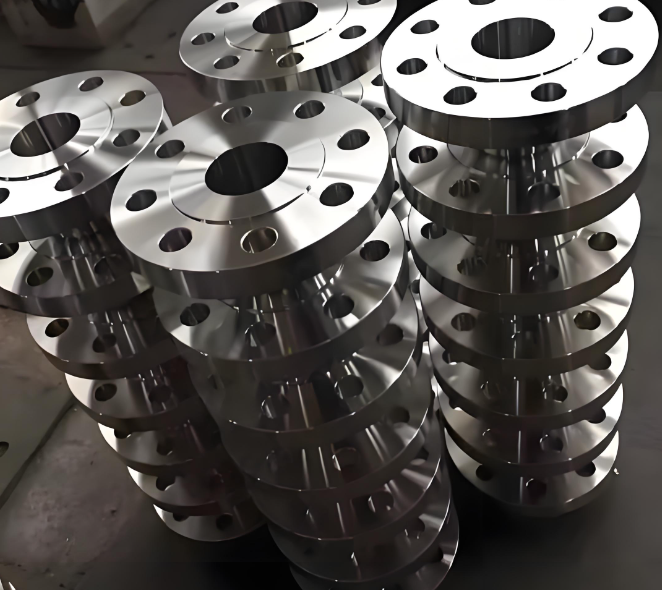

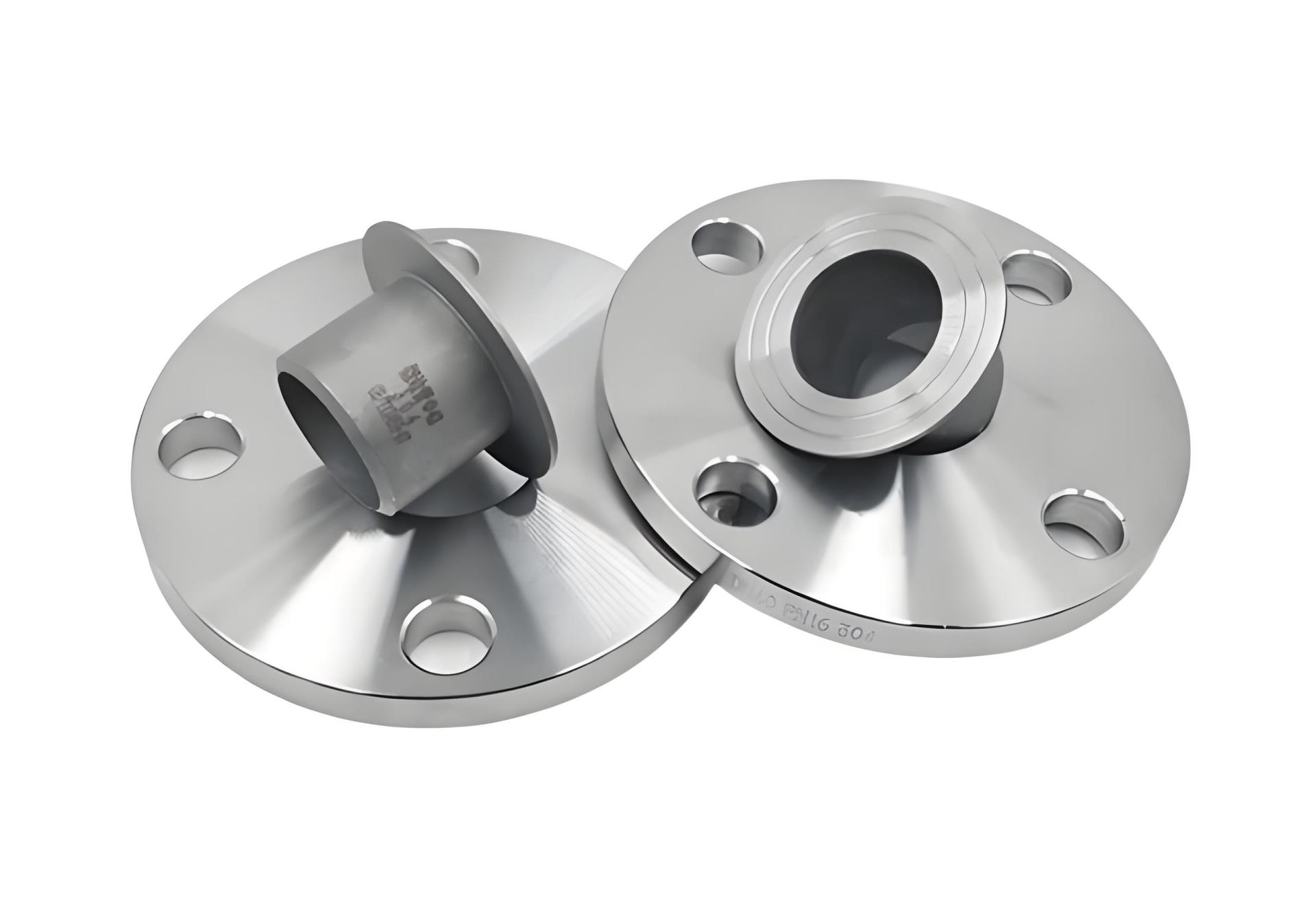

The Stainless Steel Lap-Joint Flange is a two-component assembly comprising a ‌stub end‌ (butt-welded to the pipe) and a ‌backing flange‌ (slips over the stub end). This design enables easy alignment and disassembly for maintenance, making it ideal for systems requiring frequent modifications or corrosive/abrasive media handling‌.


Key Features

  • Material Compatibility‌:

    • Stub ends: ASTM A403 WP304/316/316L, duplex 2205, or SAE 405 stainless steel for corrosion resistance‌

    • Backing flanges: Carbon steel or lower-grade stainless steel (cost-saving)‌

  • Pressure Range‌: ASME Class 150 to 2500, with pressure ratings up to 32 MPa (4640 psi)‌

  • Interchangeability‌: Compatible with ANSI B16.5, DIN, and JIS standards for global adaptability‌


Technical Specifications

ParameterDetails
Size Range½" to 60" (DN15 to DN1500)‌57
Face TypesRaised Face (RF), Flat Face (FF)‌57
Surface FinishElectro-polished (hygienic applications) or sandblasted (industrial)‌78
Temperature Range-50°F to 800°F (-45°C to 427°C)‌57

Applications

  • Chemical Processing‌: Frequent system reconfiguration in acid/alkali transfer lines‌

  • Oil & Gas‌: Pipeline systems requiring periodic inspection and component replacement‌

  • Pharmaceuticals‌: Hygienic systems with CIP/SIP compliance‌


Installation Guidelines

  1. Stub End Welding‌: Butt-weld the stub end to the pipe, ensuring full penetration and smooth internal alignment‌

  2. Flange Assembly‌: Slide the backing flange over the stub end and align with mating flange bolts‌

  3. Gasket Sealing‌: Use PTFE or spiral-wound gaskets for leak-proof connections under thermal cycling‌


Certifications

  • ANSI B16.5 compliance for dimensional standardization‌

  • ISO 9001:2025 quality assurance‌
